Insulated Bucket Trucks for Electrical and Utility Work

Check the manufacturer's data plate on the boom, which lists the insulation category and voltage rating, along with certification to ANSI A92.2 standards. Insulated booms are usually built with fiberglass sections and carry dielectric testing records, unlike the steel booms used on non-insulated units intended for general aerial maintenance.

Most insulated bucket trucks for electrical utility work carry a Category C rating up to 46kV, which is sufficient for distribution line voltages. Always match the boom's dielectric rating to the voltage of the lines being serviced and verify current certification before performing any live-line work.

It depends on the truck's GVWR. Many medium-duty bucket trucks in our inventory, such as those on Ford F-550/F-600 or Ram 5500 chassis, have a GVWR under 26,000 lbs and are classified non-CDL, though state requirements vary. Always verify local licensing rules before operating.

Working heights typically range from 40 to 75 ft depending on application. Distribution line work and telecom installations often use 40-59 ft trucks, while forestry and high-canopy tree trimming near transmission lines may require 65-75 ft working heights for adequate clearance and reach.

Insulated bucket trucks should be certified to ANSI A92.2 for vehicle-mounted aerial devices, with booms dielectrically tested to their rated insulation category. Operators must also follow OSHA 29 CFR 1926.453 requirements for aerial lift use, including regular inspections, outrigger deployment, and proper personal protective equipment.

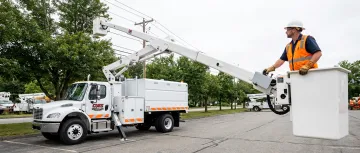

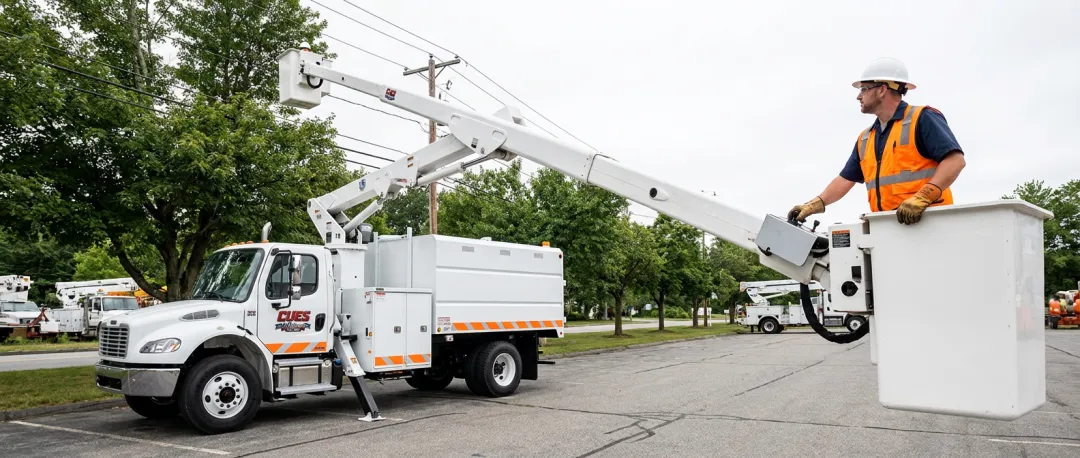

Yes, insulated bucket trucks are ideal for tree trimming near energized lines since the dielectric boom protects the crew from electrical contact. Many utility-rated models combine working heights of 45-59 ft with rotation and reach suited for vegetation management along power line corridors.
